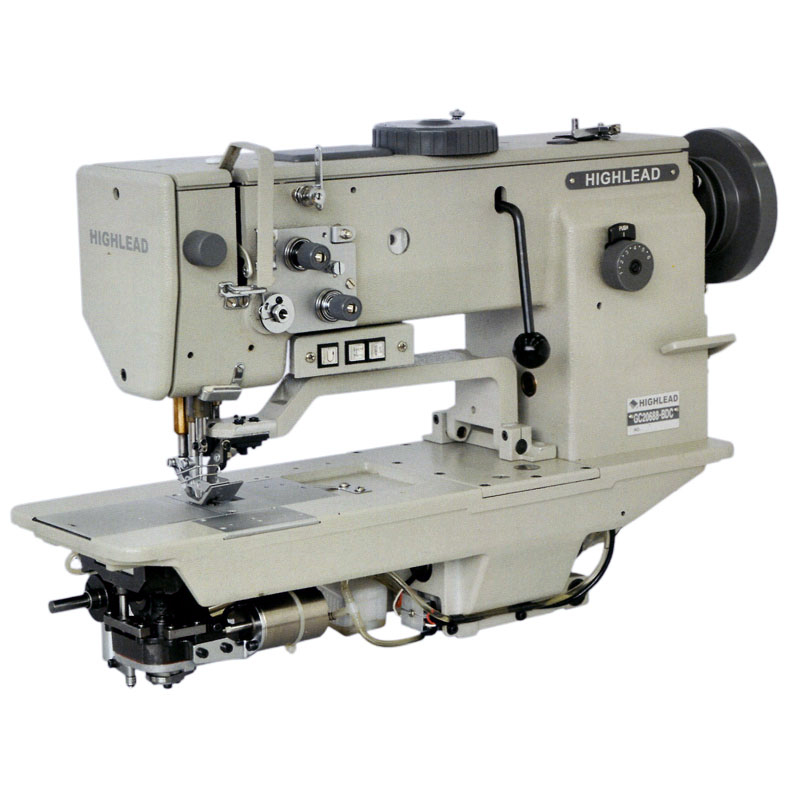

Heavy Duty Compound Feed Lockstitcher with Large Hook and Edge Cutter

Max. sewing speed:2800R.P.M
Edge cutter,binder,big size rubbish groove
Automatic thread trimmer,compound feed,automatic lubrication
Suitable for car seat,car interior decoration,sofa,suitcase,bag,etc

This model is a new product specially designed for stitching leather, nylon, synthetic leather, canvas, etc. It has the functions of auto thread trimming, auto back tacking, auto presser foot lifting, presser foot alternation changing- over and auto stitch length changing-over. With precise edge cutting, edge binding and chip disposing devices, it can perform stitching, edge cutting and edge binding simultaneously. The cutting chips can be removed easily through the wide waste chute of 150mm x 74mm. The cutting motion is synchronized with inter presser foot. The max thickness to be cut is 7mm. The standard cutting width is 8mm and the standard binder is 26mm. It is available in stitching car seat, car interior, tent, umbrella, travel luggage, sports goods, etc.

SKU: GC20688-DC Categories: ,

Description

Highlead GC20688-DC
Model GC20688-DC GC20688-BDC
Max sewing speed 3000 rpm 2800 rpm
Stitch length 0 – 9 mm
Needle bar stroke 34 mm
Presser foot lift By hand 9mm / By pneumatic 16mm
Needle size DP x 17 18# – 23#
Rotating hook Large vertical hook (1.6 times) Large vertical hook (2.5 times)
Presser foot alternation 1 – 7 mm
Auto presser foot lifter Pneumatic
Presser alternation adjuster Dial type
Safety device (Standard)
Lubrication Auto lubricated
Reverse feeding device Auto reverse feeding
Working space 300 x 120 mm
Width to be cut 8 mm Standard / 3 mm Special
Motor 750 W Servo motor
